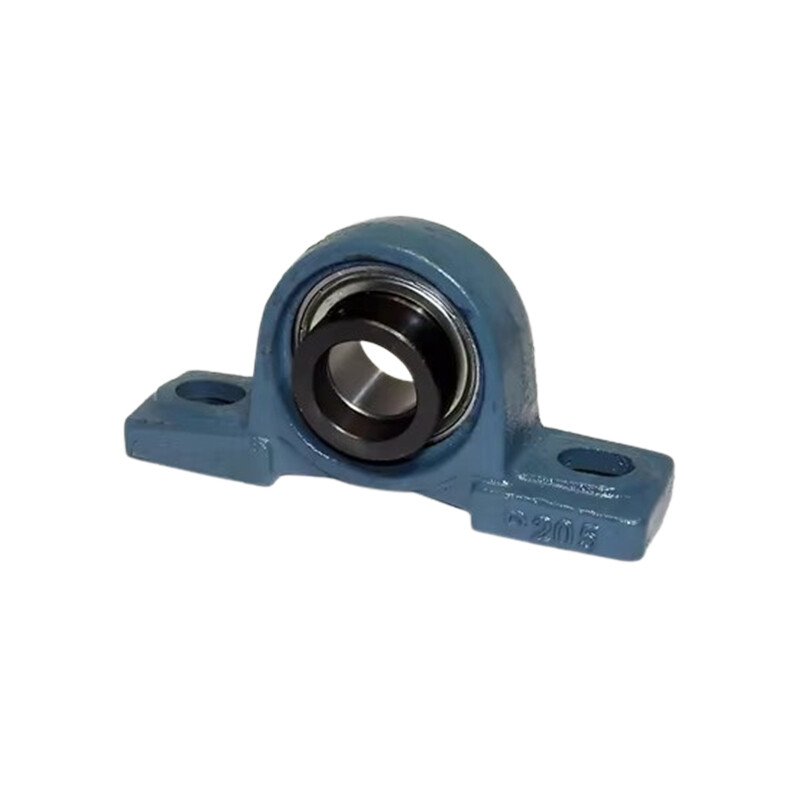

Technical Specifications
| Bearing No. | Shaft diameter(d) | Dimension(mm) | Bolt specification | Bearing No. | Housing No. | weight(kg) | ||||||||||
| min | mm | H | L | J | A | N | N1 | H1 | H0 | S | B | |||||
| SAP201 201-8 202 202-10 203 203-11 | 1/2 5/8 11/16 | 12 15 17 | 30.2 | 125 | 96 | 36 | 13 | 19 | 14 | 57 | 6,5 | 28,6 | M10 | SA 201 201-8 202 202-10 203 203-11 | P203S | 0,65 |
| SAP204-12 204 | 3/4 | 20 | 33.3 | 127 | 95 | 38 | 13 | 19 | 14 | 65 | 7,5 | 30,9 | M10 | SA 204-12 204 | P204 | 0.71 |
| SAP205-14 205-15 205 205-16 | 7/8 15/16 1 | 25 | 36.5 | 140 | 105 | 38 | 13 | 19 | 15 | 71 | 7,5 | 30,9 | M10 | SA 205-14 205-15 205 205-16 | P205 | 0.87 |
| SAP206-18 206 206-19 206-20 | 1-1/8 1-3/16 1-1/4 | 30 | 42.9 | 165 | 121 | 48 | 17 | 23 | 17 | 83 | 9 | 35.7 | M12 | SA206-18 206 206-19 206-20 | P206 | 1.38 |
| SAP207-20 207-21 207-22 207 207-23 | 1-1/14 1-5/16 1-3/8 1-7/16 | 35 | 47.6 | 167 | 127 | 48 | 17 | 23 | 18 | 93 | 9.5 | 38.9 | M12 | SA207-20 207-21 207-22 207 207-23 | P207 | 1.69 |
| SAP208-24 208-25 208 | 1-1/2 1-9/16 | 40 | 49.2 | 184 | 137 | 54 | 17 | 23 | 18 | 100 | 11 | 43,7 | M12 | SA208-24 208-25 208 | P208 | 2.03 |
| SAP209-26 209-27 209-28 209 | 1-5/8 1-11/16 1-3/4 | 45 | 54 | 190 | 146 | 54 | 17 | 23 | 20 | 108 | 11 | 43.7 | M12 | SA209-26 209-27 209-28 209 | P209 | 2.46 |
| SAP210-30 210-31 210 | 1-7/8 1-15/16 | 50 | 57.2 | 206 | 159 | 60 | 20 | 26 | 21 | 114 | 11 | 43,7 | M16 | SA210-30 210-31 210 | P210 | 2.89 |
| SAP211-32 211-34 211 211-35 | 2 2-1/8 2-3/16 | 55 | 63.5 | 219 | 171 | 60 | 20 | 26 | 23 | 126 | 12 | 48,4 | M16 | SA211-32 211-34 211 211-35 | P211 | 3.35 |
| SAP212-36 212 212-38 212-39 | 2-1/4 2-3/8 2-7/16 | 60 | 69.8 | 241 | 184 | 70 | 20 | 26 | 25 | 138 | 12 | 49,3 | M16 | SA212-36 212 212-38 212-39 | P212 | 5.20 |
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
