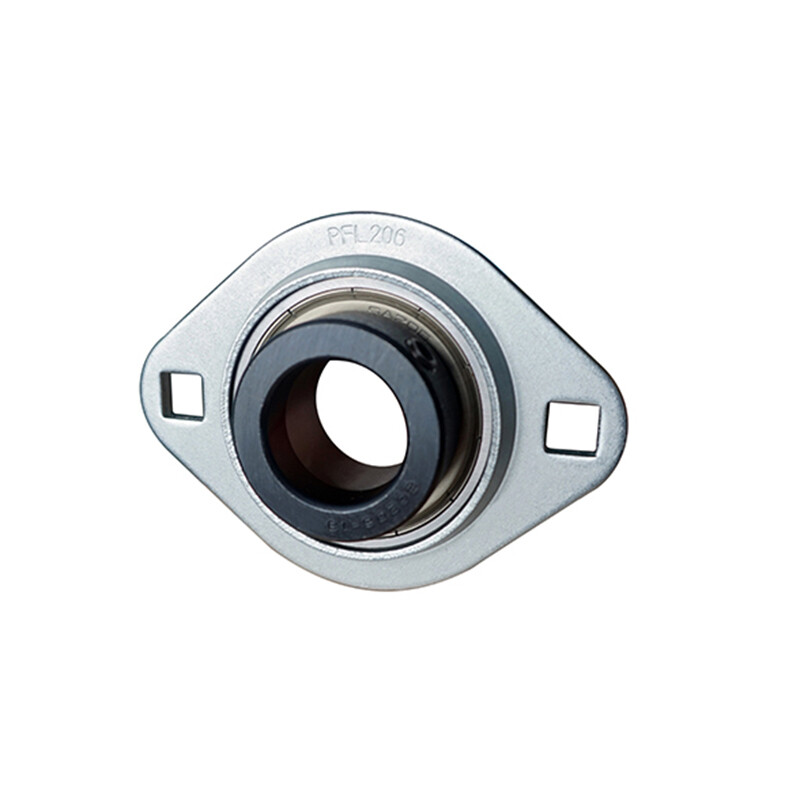

Technical Specifications
| Bearing No. | Shaft diameter (d) | Dimension ( mm) | Bolt specification | Bearing No. | Housing No. | weight(kg) | |||||||||
| (in.) | (mm) | H | J | A2 | L | N | t | S | B₁ | ||||||
| SAPFL201 201-8 202 202-10 203 203-11 | 1/2 5/8 11/16 | 12 15 17 | 81 | 63.5 | 7 | 59 | 7.5 | 2 | 6.5 | 28.6 | M6 | 1/4 | SA201 201-8 202 202-10 203 203-11 | PFL203 | 0.20 0.19 0.17 |
| SAPFL204-12 204 | 3/4 | 20 | 90 | 71.5 | 8 | 67 | 9 | 2 | 7.5 | 30.9 | M8 | 5/16 | SA204-12 204 | PFL204 | 0.25 |
| SAPFL205-14 205-15 205 205-16 | 7/8 15/16 1 | 25 | 95 | 76 | 9 | 71 | 9 | 2 | 7.5 | 30.9 | M8 | 5/16 | SA205-14 205-15 205 205-16 | PFL205 | 0.29 |
| SAPFL206-18 206 206-19 206-20 | 1-1/8 1-3/16 1-1/4 | 30 | 113 | 90.5 | 9 | 84 | 10.5 | 2.5 | 9 | 35.7 | M10 | 3/8 | SA206-18 206 206-19 206-20 | PFL206 | 0.46 |
| SAPFL207-20 207-21 207-22 207 207-23 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 122 | 100 | 10 | 94 | 10.5 | 2.5 | 9.5 | 38.9 | M10 | 3/8 | SA207-20 207-21 207-22 207 207-23 | PFL207 | 0.64 |
| SAPFL208-24 208-25 208 | 1-1/2 1-9/16 | 40 | 148 | 119 | 12 | 100 | 13.5 | 3.5 | 11 | 43.7 | M12 | 1/2 | SA208-24 208-25 208 | PFL208 | 0.94 |
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
