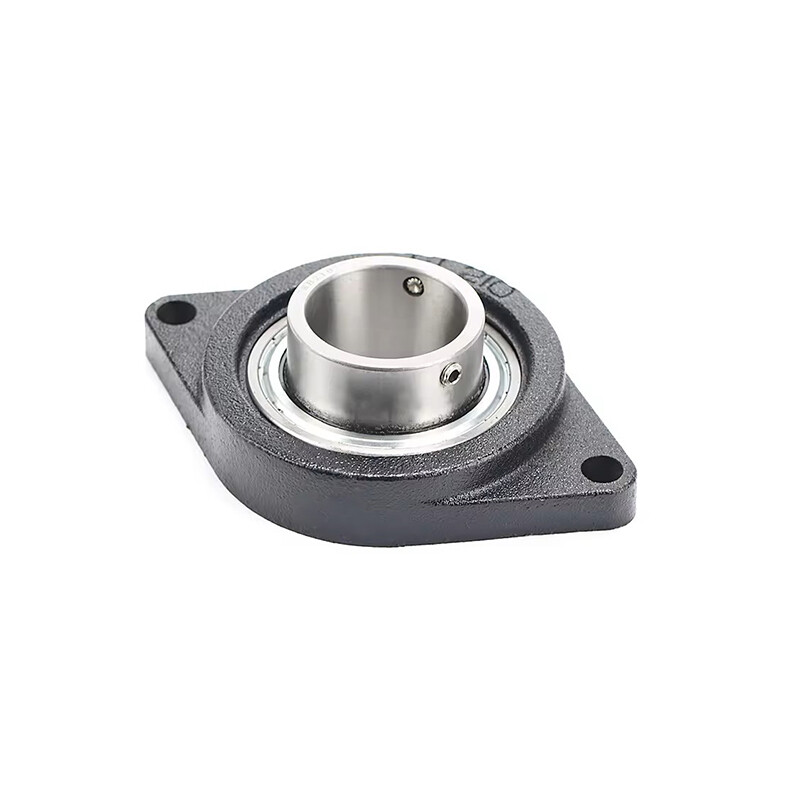

SBF200 Series

SBF200 Series

Technical Specifications

Bearing No.	Shaft diameter (d)		Dimension ( mm)								Bolt specification	Bearing No.	Housing No.	Weight (Kg)
Bearing No.	(in.)	(mm)	L	J	A2	A1	A	E	N	S	Bolt specification	Bearing No.	Housing No.	Weight (Kg)
SBF 201 201-8 202 202-10 203 203-11	1/2 5/8 11/16	12 15 17	76	54	15	11	24,5	31	12	6	M10	SB 201 201-8 202 202-10 203 203-11	F203	0,39
SBF 204-12 204	3/4	20	86	64	15	11	25,5	33	12	7	M10	SB 204-12 204	F204	0,52
SBF 205-14 205-15 205 205-16	7/8 15/16 1	25	95	70	16	13	27	35,5	12	7,5	M10	SB 205-14 205-15 205 205-16	F205	0.71
SBF 206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	108	83	18	13	31	40	12	8	M10	SB206-18 206 206-19 206-20	F206	1,00
SBF 207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	117	92	19	15	34	42,5	14	8,5	M12	SB207-20 207-21 207-22 207 207-23	F207	1,33
SBF 208-24 208-25 208	1-1/2 1-9/16	40	130	102	21	15	36	46	16	9	M14	SB208-24 208-25 208	F208	1.72
SBF 209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	137	105	22	16	38	53	16	10,2	M14	SB209-26 209-27 209-28 209	F209	2,27
SBF 210-30 210-31 210	1-7/8 1-15/16	50	143	111	22	16	40	54,6	16	10.9	M14	SB210-30 210-31 210	F210	2,38
SBF 211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	162	130	25	18	43	58,5	19	11,8	M16	SB211-32 211-34 211 211-35	F211	3,44
SBF 212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	175	143	29	18	48	67,8	19	14,9	M16	SB212-36 212 212-38 212-39	F212	3,96
