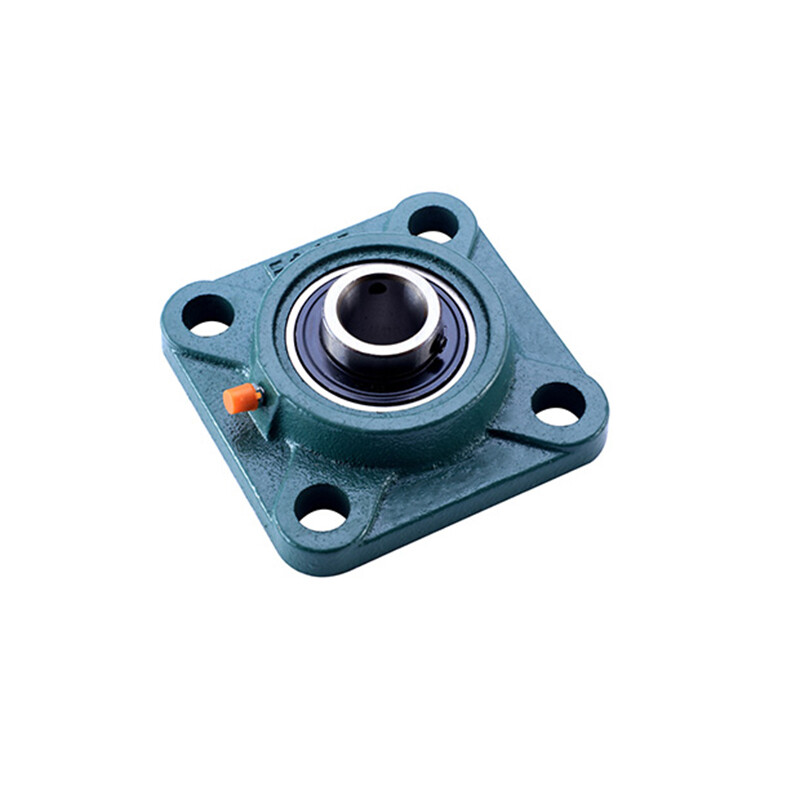

UCF200 Series

UCF200 Series

Technical Specifications

Bearing No.	d		Dimension ( mm)									Bolt specification	Bearing No.	Housing No.	Weight (Kg)
Bearing No.	(in.)	(mm)	L	J	A2	A1	A	E	N	S	B	Bolt specification	Bearing No.	Housing No.	Weight (Kg)
UCF 201 201-8 202 202-10 203 203-11 204-12 204	1/2 5/8 11/16 3/4	12 15 17 20	86	64	15	11	25.5	35,3	12	12.7	31	M10	UC 201 201-8 202 202-10 203 203-11 204-12 204	F204	0.68
UCF 205-14 205-15 205 205-16	7/8 15/16 1	25	95	70	16	13	27	35,7	12	14,3	34.1	M10	UC 205-14 205-15 205 205-16	F205	0.65
UCF 206-18 206 206/19 206-20	1-1/8 1-3/16 1-1/4	30	108	83	18	15	31	40,2	12	15.9	38.1	M10	UC 206-18 206 206/19 206-20	F206	1.18
UCF 207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-5/8 1-7/16	35	117	92	19	15	34	44.4	14	17,5	42.9	M12	UC 207-20 207-21 207-22 207 207-23	F207	1.53
UCF 208-24 208-25 208	1-1/2 1-9/16	40	130	102	21	15	36	51,2	16	19	49.2	M14	UC 208-24 208-25 208	F208	1.85
UCF 209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	137	105	22	16	38	52,2	16	19	49.2	M14	UC 209-26 209-27 209-28 209	F209	2.1
UCF 210-30 210-31 210	1-7/8 1-15/16	50	143	111	22	16	40	54.6	16	19	51.6	M14	UC 210-30 210-31 210	F210	2.5
UCF 211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	162	130	25	18	43	58,4	19	22,2	55.6	M16	UC211-32 211-34 211-35	F211	3.2
UCF 212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	175	143	29	18	48	68,7	19	25,4	65.1	M16	UC 212-36 212-38 212-39	F212	4.35
UCF 213-40 213	2-1/2	65	187	149	30	22	50	69,7	19	25.4	65.1	M16	UC213-40 213	F213	4.91
UCF 214-44 214	2-3/4	70	193	152	31	22	54	75,4	19	30,2	74.6	M16	UC214-44 214	F214	6.27
UCF 215 215-48	2-15/16 3	75	200	159	34	22	56	78,5	19	33,3	77.8	M16	UC215 215-48	F215	6.33
UCF 216		80	208	165	34	22	57	83,3	22	33,3	82.6	M20	UC216	F216	7
UCF 217-52 217	3-1/4	85	220	175	36	24	63	87,6	23	34,1	85.7	M20	UC 217-52 217	F217	8.9
UCF 218-56 218	3-1/2	90	235	187	40	25	68	96,3	23	39.7	96	M20	UC 218-56 218	F218	11.1
UCF 220 220-64	4	100	265	210	44	25	70	110	27	42	108	M22	UC220 220-64	F220	15.55
