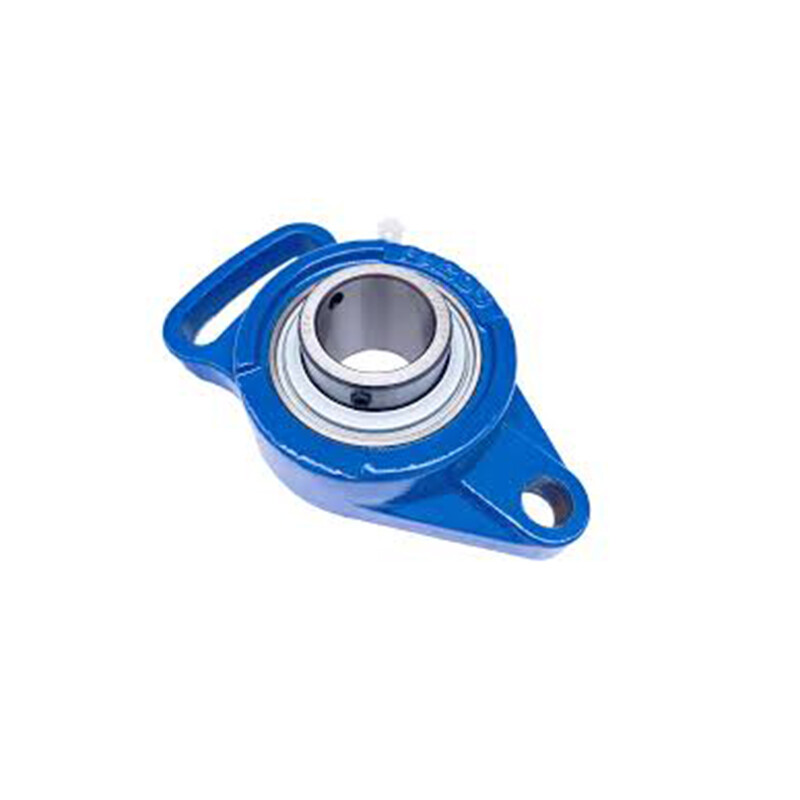

UCFA200 Series

UCFA200 Series

Technical Specifications

Shaft Diameter(d)		Bearing No.	Dimension (mm)										Bolt specification	Bearing No.	Housing No.	weight
(min.)	(mm)	Bearing No.	H	J	L	P	A1	A2	A	N	E	S	Bolt specification	Bearing No.	Housing No.	(kg)
1/2 5/8 11/16 3/4	12 15 17 20	UCFA201 201-8 202 202-10 203 203-11 204-12 204	98	78	59	50	11	13,74	24	10	32,04	12,7	M8	UC 201 201-8 202 202-10 203 203-11 204-12 204	FA204	0,48
7/8 15/16 1	25	UCFA205-14 205-15 205 205-16	122	96	70	64	13	16	27	12	35,7	14,3	M10	UC205-14 205-15 205 205-16	FA205	0,69
1-1/8 1-3/16 1-1/4	30	UCFA206-18 206 206-19 206-20	141	115	80	68	14	18	30,5	12	40,2	15,9	M10	UC206-18 206 206-19 206-20	FA206	1,0
1-1/14 1-5/16 1-3/8 1-7/16	35	UCFA207-20 207-21 207-22 207 207-23	155	128	92	75	15	19	33	13	44,4	17,5	M12	UC207-20 207-21 207-22 207 207-23	FA207	1,5
1-1/2 1-9/16	40	UCFA208-24 208-25 208	171	144	105	84	14	21	38	13	51,2	19	M12	UC208-24 208-25 208	FA208	1,8
1-5/8 1-11/16 1-3/4	45	UCFA209-26 209-27 209-28 209	178	146	108	88	16	22	38	16	52,2	19	M12	UC209-26 209-27 209-28 209	FA209	2,1
1-7/8 1-15/16 2	50	UCFA210-30 210-31 210 210-32	188	155	114	92	16	22	39	16	54,6	19	M12	UC210-30 210-31 210 210-32	FA210	2,3
2 2-1/8 2-3/16	55	UCFA211-32 211-34 211 211-35	216	182	128	102	18	25	42,5	16	58,4	22,2	M14	UC211-32 211-34 211 211-35	FA211	3,6
2-1/4 2-3/8 2-7/16	60	UCFA212-36 212 212-38 212-39	238	202	140	122	19	29	47,5	18	68,7	25,4	M14	UC212-36 212 212-38 212-39	FA212
2-1/2	65	UCFA213-40 213	248	210	152	126	20	30	49	18	69,7	25,4	M14	UC213-40 213	FA213
