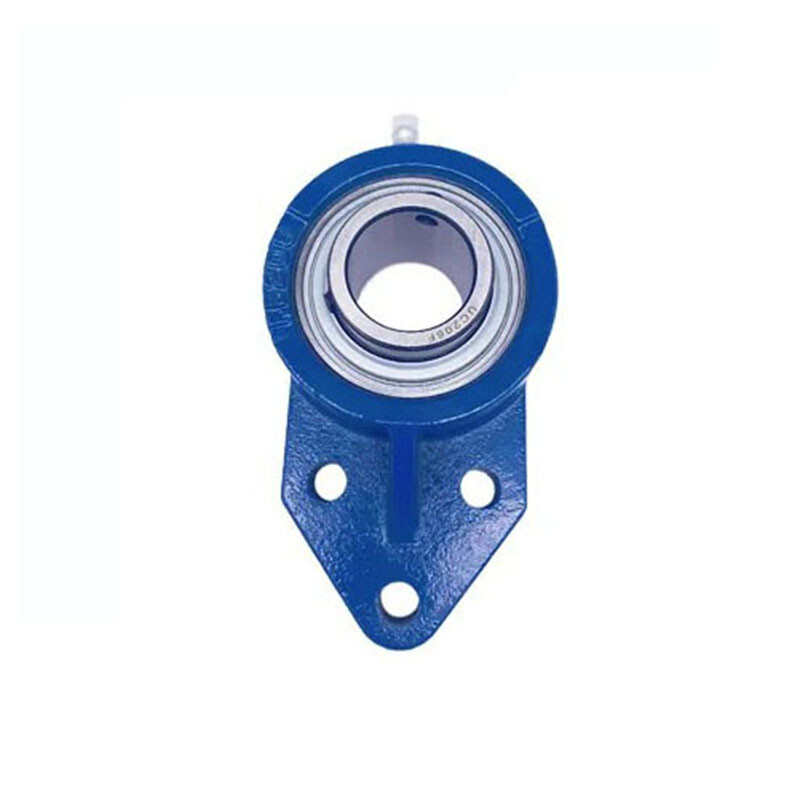

UCFB200 Series

UCFB200 Series

Technical Specifications

Shaft Diameter(d)		Bearing No.	Dimension (mm)													Bolt specification	Bearing No.	Housing No.	Weight(kg)
(min.)	(mm)	Bearing No.	H0	L	H1	P	H	j	J	A	A1	A2	N	E	S	Bolt specification	Bearing No.	Housing No.	Weight(kg)
1/2 5/8 11/16 3/4	12 15 17 20	UCFB201 201-8 202 202-10 203 203-11 204-12 204	109	60	52	52	42	27	32	25,5	11	15	10	33,3	12,7	M8	UC 201 201-8 202 202-10 203 203-11 204-12 204	FB204	0,65
7/8 15/16 1	25	UCFB205-14 205-15 205 205-16	116	68	52	56	45	27	34	27	13	16	10	35,7	14,3	M8	UC205-14 205-15 205 205-16	FB205	0.69
1-1/8 1-3/16 1-1/4	30	UCFB206-18 206 206-19 206-20	132	80	55	65	50	29	40	31	13	18	10	44,2	15,9	M8	UC206-18 206 206-19 206-20	FB206	0,93
1-1/14 1-5/16 1-3/8 1-7/16	35	UCFB207-20 207-21 207-22 207 207-23	144	90	62	70	55	32	46	33	14	19	10	44,4	17,5	M8	UC207-20 207-21 207-22 207 207-23	FB207	1,3
1-1/2 1-9/16	40	UCFB208-24 208-25 208	164	100	72	78	60	41	50	35	17	21	12	51,2	19	M10	UC208-24 208-25 208	FB208	1,8
1-5/8 1-11/16 1-3/4	45	UCFB209-26 209-27 209-28 209	175	108	76	80	65	43	54	38	16	22	12	52,2	19	M10	UC209-26 209-27 209-28 209	FB209	2,0
1-7/8 1-15/16 2	50	UCFB210-30 210-31 210 210-32	184	114	82	86	68	46	58	39	16	22	12	54,6	19	M10	UC210-30 210-31 210 210-32	FB210	2,3
2 2-1/8 2-3/16	55	UCFB211-32 211-34 211 211-35	207	128	86	90	78	50	62	42,5	18	25	14	58,4	22.2	M12	UC211-32 211-34 211 211-35	FB211
2-1/4 2-3/8 2-7/16	60	UCFB212-36 212 212-38 212-39	224	140	90	94	84	55	66	47.5	19	29	14	68,7	25,4	M12	UC212-36 212 212-38 212-39	FB212
2-1/2	65	UCFB213-40 213	244	152	95	102	92	60	70	49	20	30	14	69,7	25,4	M12	UC213-40 213	FB213
