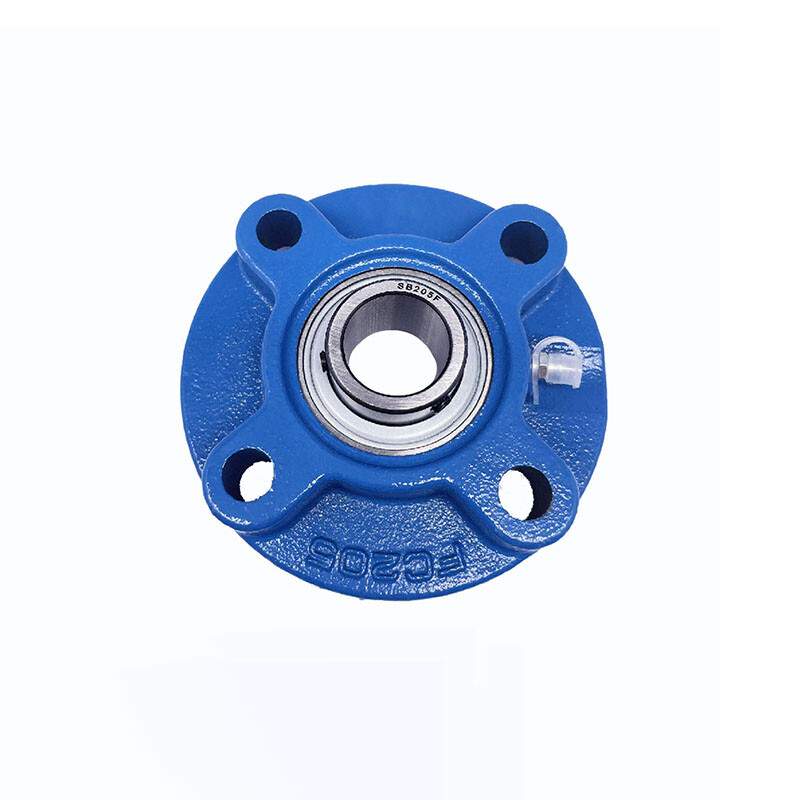

UCFC200 Series

UCFC200 Series

Technical Specifications

Dimension (mm)		Bearing No.	Dimension (mm)												Bolt specification	Bearing No.	Housing No.	Weight(kg)
(in.)	(mm)	Bearing No.	L	P	A2	A1	A	j	K	N	J	F	S	E	Bolt specification	Bearing No.	Housing No.	Weight(kg)
1/2 5/8 11/16	12 15 17	UCFC201 201-8 202 202-10 203 203-11	90	70	10	19	23	4	5	10	49,5	55	11,5	25,9	M8	UC 201 201-8 202 202-10 203 203-11	FC203	0.56
3/4	20	UCFC204-12 204	100	78	10	20,5	25,5	5	6	12	55,1	62	12,7	28,3	M10	UC204-12 204	FC204	0,79
7/8 15/16 1	25	UCFC205-14 205-15 205 205-16	115	90	10	21	27	6	7	12	63.6	70	14,3	29,7	M10	UC 205-14 205-15 205 205-16	FC205	0.96
1-1/8 1-3/16 1-1/4	30	UCFC206-18 206 206-19 206-20	125	100	10	23	31	8	8	12	70.7	80	15.9	32.2	M10	UC206-18 206 206-19 206-20	FC206	1,37
1-1/4 1-5/16 1-3/8 1-7/16	35	UCFC207-20 207-21 207-22 207 207-23	135	110	11	26	34	8	9	14	77,8	90	17,5	36.4	M12	UC207-20 207-21 207-22 207 207-23	FC207	1.70
1-1/2 1-9/16	40	UCFC208-24 208-25 208	145	120	11	26	36	10	9	14	84.8	100	19	41,2	M12	UC208-24 208-25 208	FC208	2.0
1-5/8 1-11/16 1-3/4	45	UCFC209-26 209-27 209-28 209	160	132	10	26	38	12	10	16	93,3	105	19	40,2	M14	UC209-26 209-27 209-28 209	FC209	2,7
1-7/8 1-15/16	50	UCFC210-30 210-31 210	165	138	10	28	40	12	12	16	97.6	110	19	42.6	M14	UC210-30 210-31 210	FC210	2.9
2 2-1/8 2-3/16	55	UCFC211-32 211-34 211 211-35	185	150	13	30	42	12	13	19	106,1	125	22,2	46,4	M16	UC211-32 211-34 211 211-35	FC211	4.2
2-1/4 2-3/8 2-7/16	60	UCFC212-36 212 212-38 212-39	195	160	17	36	48	12	14	19	113,1	135	25,4	56.7	M16	UC212-36 212 212-38 212-39	FC212	4.94
2-1/2	65	UCFC213-40 213	205	170	16	35	49	14	14	19	120,2	145	25,4	55,7	M16	UC213-40 213	FC213	5,7
2-3/4	70	UCFC214-44 214	215	177	17	38	52	14	15	19	125,1	150	30.2	61,4	M16	UC214-44 214	FC214	6,8
3	75	UCFC215 215-48	220	184	18	39	55	16	15	19	130,1	160	33.3	62,5	M16	UC215 215-48	FC215	7.2
	80	UCFC216	240	200	18	42	58	16	16	23	141,4	170	33,3	67.3	M20	UC216	FC216	8,7
3-1/4	85	UCFC217-52 217	250	208	18	45	63	18	17	23	147,1	180	34.1	69.6	M20	UC217-52 217	FC217	10,3
3-1/2	90	UCFC218-56 218	265	220	22	50	68	18	18	23	155,5	190	39.7	78,3	M20	UC218-56 218	FC218	13,5
	100	UCFC220	330	280	24	55	75	20	25	26	198	220	42	90	M24	UC220	FC218	17.5
