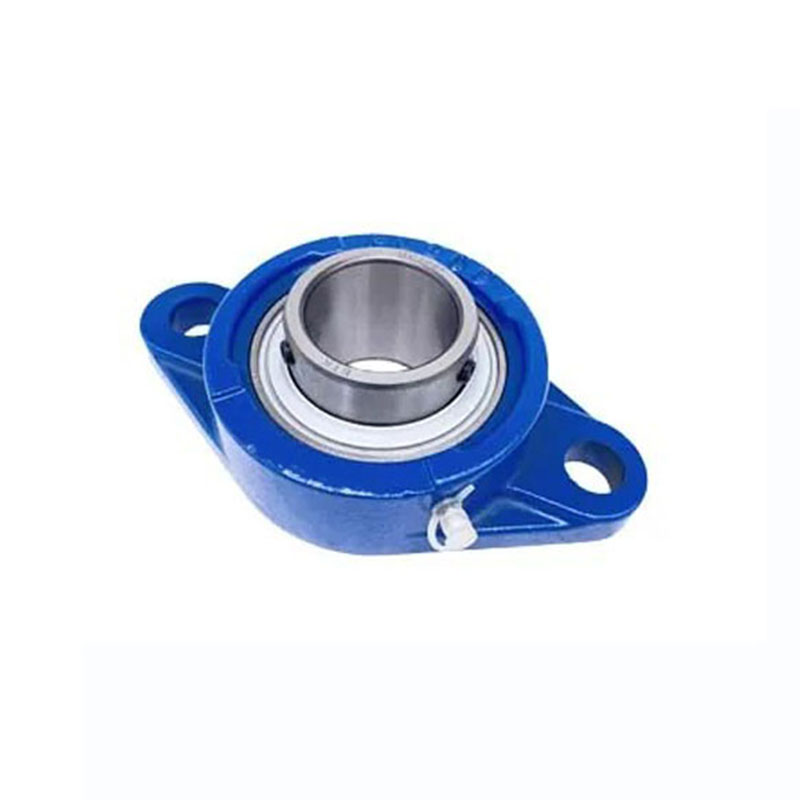

UCFL200 Series

UCFL200 Series

Technical Specifications

Bearing No.	Shaft diameter(d)		Dimension (mm)									Bolt specification	Bearing No.	Housing No.	Weight(kg)
Bearing No.	(min.)	(mm)	H	J	L	A2	A1	A	E	N	s	Bolt specification	Bearing No.	Housing No.	Weight(kg)
UCFL201 201-8 202 202-10 203 203-11 204-12 204	1/2 5/8 11/16 3/4	12 15 17 20	113	90	60	15	11	25,5	33,3	12	12.7	M10	UC201 201-8 202 202-10 203 203-11 204-12 204	FL204	0,51
UCFL205-14 205-15 205 205-16	7/8 15/16 1	25	130	99	68	16	13	27	35,7	16	14.3	M14	UC205-14 205-15 205 205-16	FL205	0,60
UCFL206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	148	117	80	18	13	31	40,2	16	15,9	M14	UC206-18 206 206-19 206-20	FL206	0,90
UCFL207-20 207-21 207-22 207 207-23	1-1/14 1-5/16 1-3/8 1-7/16	35	161	130	90	19	15	34	44,4	16	17.5	M14	UC207-20 207-21 207-22 207 207-23	FL207	1,20
UCFL208-24 208-25 208	1-1/2 1-9/16	40	175	144	100	21	14	36	51.2	16	19	M14	UC208-24 208-25 208	FL208	1,50
UCFL209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	188	148	108	22	16	38	52.2	19	19	M16	UC209-26 209-27 209-28 209	FL209	1,90
UCFL210-30 210-31 210 210-32	1-7/8 1-15/16 2	50	197	157	115	22	16	40	54,6	19	19	M16	UC210-30 210-31 210 210-32	FL210	2,20
UCFL211-32 211-34 211 211-35	2 2-1/8 2-3/16	55	224	184	130	25	18	43	58,4	19	22,2	M16	UC211-32 211-34 211 211-35	FL211	3,10
UCFL212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	250	202	140	29	18	48	68,7	23	25,4	M20	UC212-36 212 212-38 212-39	FL212	4,0
UCFL213-40 213	2-1/2	65	258	210	155	30	20	50	69,7	23	25,4	M20	UC213-40 213	FL213	5.0
UCFL214-44 214	2-3/4	70	265	216	160	31	20	54	75,4	23	30,2	M20	UC214-44 214	FL214	5,6
UCFL215 215 215-48	2-15/16 3	75	275	225	164	34	22	55	78,5	23	33,3	M20	UC215 215 215-48	FL215	6.2
UCFL216		80	290	233	180	34	22	58	83,3	25	33,3	M22	UC216	FL216	7,8
UCFL217-52 217	3-1/4	85	305	248	190	36	22	63	87,6	25	34,1	M22	UC 217-52 217	FL217	9.8
UCFL218-56 218	3-1/2	90	320	265	205	40	23	68	96,3	25	39,7	M22	UC 218-56 218	FL218	12,4
