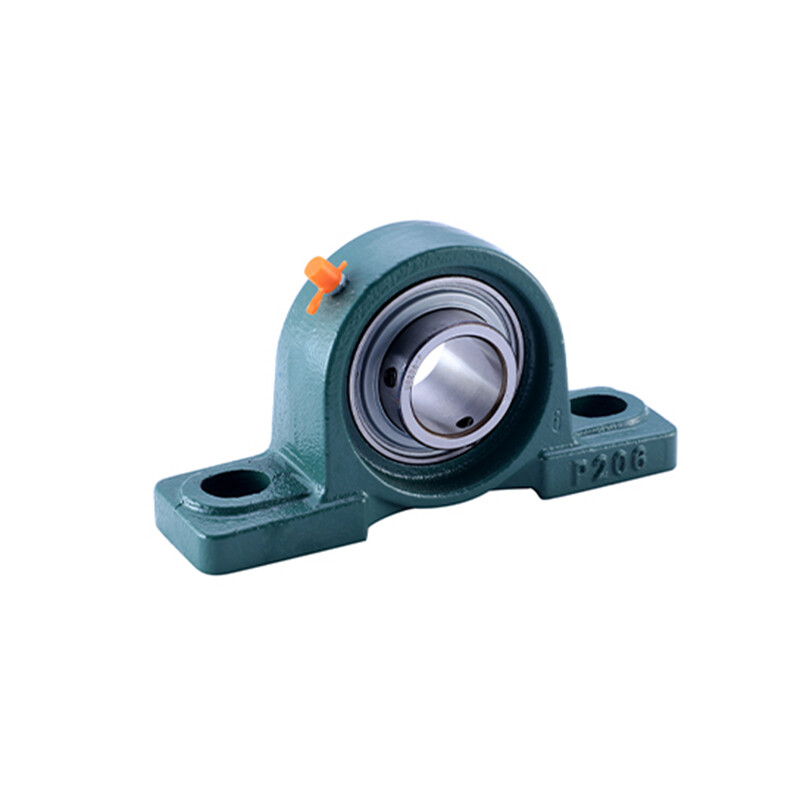

UCP200 Series

UCP200 Series

Technical Specifications

Bearing No.	Shaft diameter(d)		Dimension (mm)										Bolt specification	Bearing No.	Housing No.	weight (kg)
Bearing No.	min	mm	H	L	J	A	N	N1	H1	H0	S	B	Bolt specification	Bearing No.	Housing No.	weight (kg)
UCWP201 201-8 UCWP202 202-10 UCWP203 203-11	1/2 5/8 11/16	12 15 17	30,2	125	96	36	13	19	14	57	11,5	27.4	M10	UCW201 201-8 UCW202 202-10 UCW203 203-11	P203	0.65
UCP204-12 204	3/4	20	33.3	127	95	38	13	19	14	65	12.7	31	M10	UC 204-12 204	P204	0.71
UCP205-14 205-15 205 205-16	7/8 15/16 1	25	36.5	140	105	38	13	19	15	71	14.3	34,1	M10	UC205-14 205-15 205 205-16	P205	0.87
UCP206-18 206 206-19 206-20	1-1/8 1-3/16 1-1/4	30	42.9	165	121	48	17	23	17	83	15.9	38,1	M12	UC206-18 206 206-19 206-20	P206	1.38
UCP207-20 207-21 207-22 207 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	47,6	167	127	48	17	23	18	93	17.5	42,9	M12	UC207-20 207-21 207-22 207 207-23	P207	1.69
UCP208-24 208-25 208	1-1/2 1-9/16	40	49,2	184	137	54	17	23	18	100	19	49.2	M12	UC208-24 208-25 208	P208	2.03
UCP209-26 209-27 209-28 209	1-5/8 1-11/16 1-3/4	45	54	190	146	54	17	23	20	106	19	49,2	M12	UC209-26 209-27 209-28 209	P209	2.46
UCP210-30 210-31 210	1-7/8 1-15/16	50	57,2	206	159	60	20	26	21	114	19	51.6	M16	UC210-30 210-31 210	P210	2.89
UCP211-32 211-34 211 211-35	2 2-1/8 1-3/4 2-3/16	55	63,5	219	171	60	20	26	23	126	22.2	55.6	M16	UC211-32 211-34 211 211-35	P211	3.4
UCP212-36 212 212-38 212-39	2-1/4 2-3/8 2-7/16	60	69.8	241	184	70	20	26	25	138	25.4	65.1	M16	UC212-36 212 212-38 212-39	P212	5.25
UCP213-40 213	2-1/2	65	76,2	265	203	70	25	31	27	151	25,4	65.1	M20	UC213-40 213	P213	5.95
UCP214-44 214	2-3/4	70	79,4	266	210	72	25	31	27	157	30.2	74.6	M20	UC214-44 214	P214	6.56
UCP215 215-48 UCP216	3	75 80	82,6 88,9	275 292	217 232	74 78	25 25	31 31	28 30	163 175	33.3 33,3	77.8 82.6	M20 M20	UC215 215-48 UC216	P215 P2L6	7.5 9.0
UCP217-52 217	3-1/4	85	95,2	310	247	83	25	31	32	187	34.1	85,7	M20	UC217-52 217	P217	11
UCP218-56 218	3-1/2	90	101,6	327	262	88	27	33	33	200	39.7	96	M22	UC218-56 218	P2L6	13
UCP220 220-64	3-1/4	85	115	380	308	95	30	38	40	225	42	108	M24	UC220 220-64	P220	16
