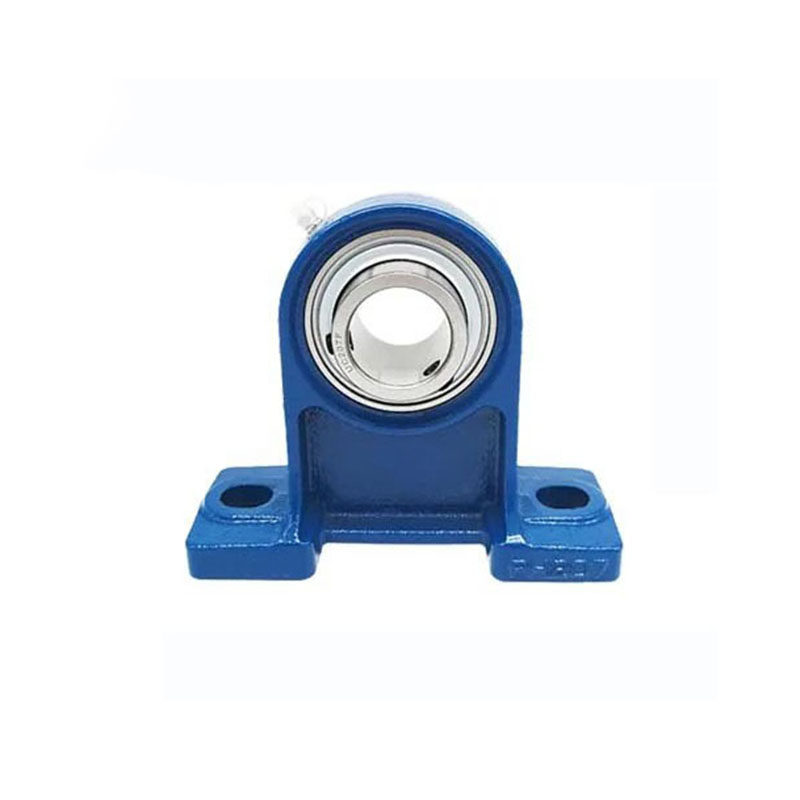

UCPH200 Series

UCPH200 Series

Technical Specifications

Dimension (mm)		Bearing No.	Dimension (mm)										Bolt specification	Bearing No.	Housing No.	weight (kg)
(min.)	(mm)	Bearing No.	H	L	J	A	N	N1	H1	H0	S	B	Bolt specification	Bearing No.	Housing No.	weight (kg)
1/2 5/8 11/16 3/4	12 15 17 20	UCPH201 201-8 202 202-10 203 203-11 204-12 204	70	95	127	40	12	16	13	101	12,7	31	M10	UC 201 201-8 202 202-10 203 203-11 204-12 204	PH204	0,97
7/8 15/16 1	25	UCPH205-14 205-15 205 205-16	80	105	140	50	13	19	16	114	14.3	34,1	M10	UC205-14 205-15 205 205-16	PH205	1,20
1-1/8 1-3/16 1-1/4	30	UCPH206-18 206 206-19 206-20	90	121	165	50	17	21	18	130	15,9	38,1	M14	UC206-18 206 206-19 206-20	PH206	1,60
1-1/4 1-5/16 1-3/8 1-7/16	35	UCPH207-20 207-21 207-22 207 207-23	95	127	167	60	17	21	19	140	17.5	42,9	M14	UC207-20 207-21 207-22 207 207-23	PH207	2,10
1-1/2 1-9/16	40	UCPH208-24 208-25 208	100	137	184	66	17	21	20	150	19	49.2	M14	UC208-24 208-25 208	PH208	2,70
1-5/8 1-11/16 1-3/4	45	UCPH209-26 209-27 209-28 209	105	146	190	70	17	21	20	158	19	49,2	M14	UC209-26 209-27 209-28 209	PH209	3,10
1-7/8 1-15/16 2	50	UCPH210-30 210-31 210 210-32	110	159	204	70	19	22	22	165	19	51,6	M16	UC210-30 210-31 210 210-32	PH210	3,50
2 2-1/8 1-3/4 2-3/16	55	UCPH211-32 211-34 211 211-35	120	171	217	75	19	22	23	181	22,2	55,6	M16	UC211-32 211-34 211 211-35	PH211	4,07
2-1/4 2-3/8 2-7/16	60	UCPH212-36 212 212-38 212-39	130	186	236	80	19	22	24	197	25,4	65,1	M16	UC212-36 212 212-38 212-39	PH212
2-1/2	65	UCPH213-40 213	140	203	258	85	23	28	26	213	25,4	65,1	M20	UC213-40 213	PH213
2-3/4	70	UCPH214-44 214	150	210	266	90	23	28	27	227	30,2	74,6	M20	UC214-44 214	PH214
3	75	UCPH215 215 215-48	160	217	274	95	23	28	28	240	33,3	77,8	M20	UC215 215 215-48	PH215
	80	UCPH216	170	232	290	100	24	28	30	256	33,3	82,6	M20	UC216	PH216
