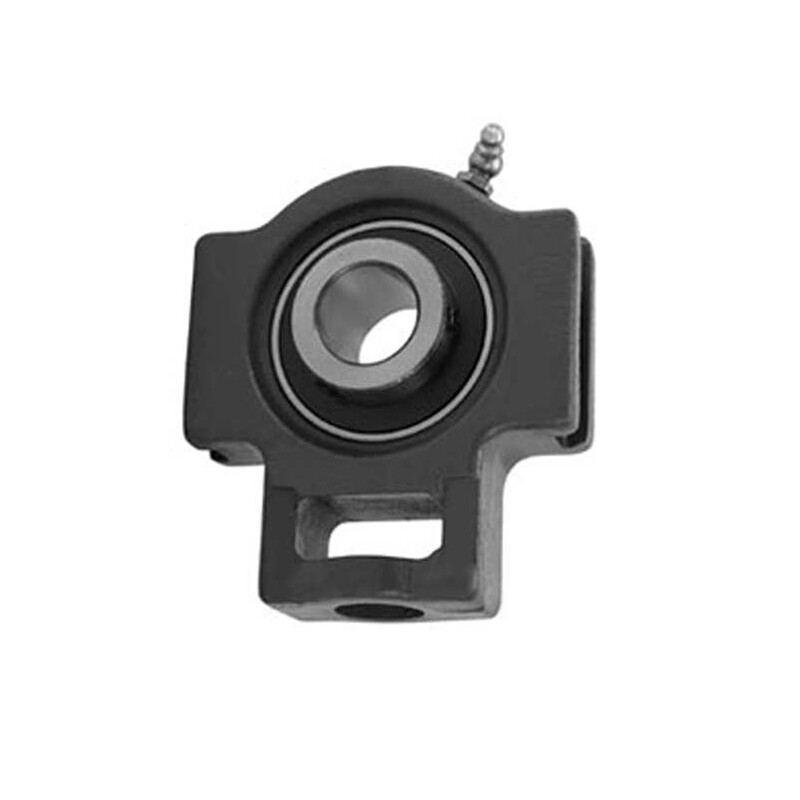

UCTX00 Series

UCTX00 Series

Technical Specifications

Bearing No.	Shaft diameter(d)		Dimension( mm)																Bearing No.	Housing No.	Weight(kg)
Bearing No.	( in.)	( mm)	D	N₁	L₂	H₂	N₂	N	L₃	A₁	H₂	H	L	A	A₂	L₁	B	S	Bearing No.	Housing No.	Weight(kg)
UCTX05-16 UCTX05	1	25	62	16	10	56	37	22	57	12	89	102	113	37	28	70	38.1	15.9	UCX05-16 UCX05	TX05	1.3
UCTX06-19 UCTX06-20 UCTX06	1-3/16 1-1/4	30	72	16	13	64	37	22	64	12	89	102	129	37	30	78	42.9	17.5	UCX06-19 UCX06-20 UCX06	TX06	1.6
UCTX07-22 UCTX07-23 UCTX07	1-3/8 1-7/16	35	80	19	16	83	49	29	83	16	102	114	144	49	33	88	49.2	19	UCX07-22 UCX07-23\| UCX07	TX07	2.4
UCTX08-24 UCTX08	1-1/2	40	85	19	16	83	49	29	83	16	102	117	144	49	35	87	49.2	19	UCX08-24 UCX08	TX08	2.4
UCTX09-26 UCTX09-27 UCTX09-28 UCTX09	1-5/8 1-11/16 1-3/4	45	90	19	16	83	49	29	86	16	102	117	149	49	37	90	51.6	19	UCX09-26 UCX09-27 UCX09-28 UCX09	TX09	2.6
UCTX10-31 UCTX10-32 UCTX10	1-15/16 2	50	100	25.4	19	102	64	35	95	22	130	146	171	64	38	106	55.6	22.2	UCX10-31 UCX10-32 UCX10	TX10	3.9
UCTX11-35 UCTX11-36 UCTX11	2-3/16 2-1/4	55	110	32	19	102	64	35	102	22	130	146	194	64	42	119	65.1	25.4	UCX11-35\| UCX11-36 UCX11	TX11	4.8
UCTX12-38 UCTX12-39 UCTX12	2-3/16 2-1/4	60	120	32	21	111	70	41	121	26	151	167	224	70	44	137	65.1	25.4	UCX12-38 UCX12-39 UCX12	TX12	7.0
UCTX13-40 UCTX13	2-1/2	65	125	32	21	111	70	41	121	26	151	167	224	70	46	137	74.6	30.2	UCX13-40 UCX13	TX13	7.0
UCTX14-44 UCTX14	2-3/4	70	130	32	21	111	70	41	121	26	151	167	232	70	48	140	77.8	33.3	UCX14-44 UCX14	TX14	7.4
UCTX15-47 UCTX15-48 UCTX15	2-15/16 3	75	140	32	21	111	70	41	121	26	165	184	235	70	51	140	82.6	33.3	UCX15-47 UCX15-48 UCX15	TX15	8.2
UCTX16-50 UCTX16	3-1/4	80	150	38	29	124	73	48	157	30	173	198	260	73	54	162	85.7	34.1	UCX16-50 UCX16	TX16	11.0
UCTX17-55 UCTX17	3-7/16	85	160	40	30	130	80	48	140	30	190	215	275	80	55	170	96	39.7	UCX17-55 UCX17	TX17	12.75
