Technical Specifications
| Shaft (d) (mm) | Bearing No. | Dimension (mm/min.) | Stop screw specification(mm) | Load (N) | Weight（KG） | |||||||
| D | B | C | S | G | Cr | Cor | ||||||

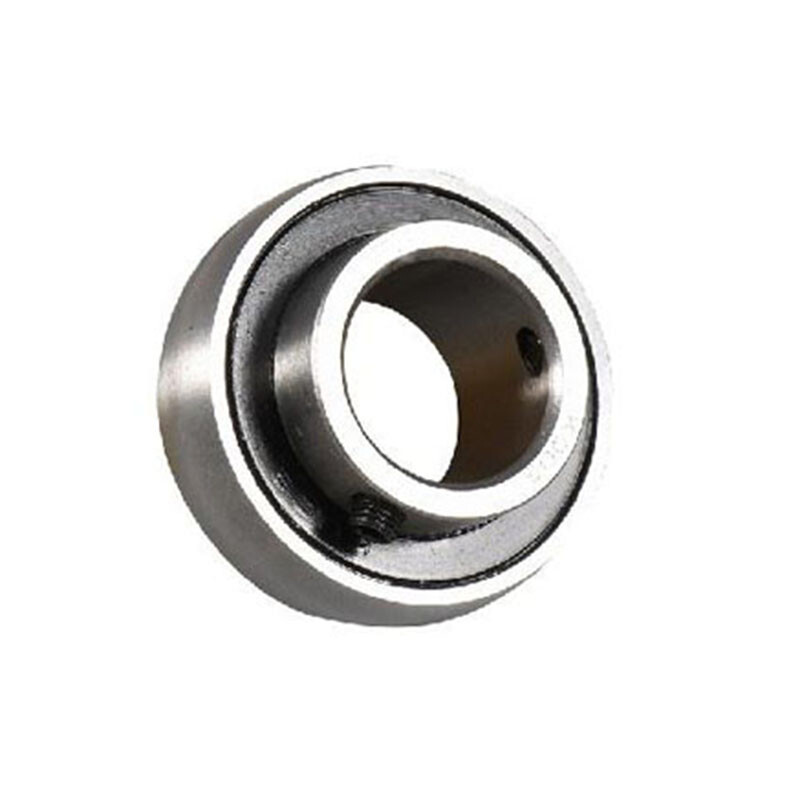

| 10 | K000 SS-K000 SS-K000 | 26 1,0236 | 14 0,551 | 8 0,315 | 4.0 0,157 | 3,0 0,118 | M3X0.35 | 5100 | 2230 | 0,02 | ||
| 12 | K001 SS-K001 | 28 1,1024 | 14.5 0,571 | 8 0,315 | 4,0 0,157 | 3,0 0,118 | M3X0.35 | 5096 | 2401 | 0,03 | ||
| 15 | K002 SS-K002 | 32 1.2598 | 16,5 0,65 | 9 0,354 | 4,5 0,177 | 3.5 0,138 | M4X0.5 | 5586 | 2842 | 0,05 | ||
| 17 | K003 SS-K003 | 35 1,3779 | 17.5 0,689 | 10 0,394 | 5.0 0,197 | 3.5 0,138 | M4X0.5 | 5978 | 3284 | 0,05 | ||
| 20 | K004 SS-K004 | 42 1.6535 | 21 0.827 | 12 0.472 | 6.0 0.236 | 4.0 0.157 | M5X0.5 | 9359 | 5047 | 0,09 | ||
| 25 | K005 SS-K005 | 47 1,8504 | 22,5 0,886 | 12 0,472 | 6.0 0.236 | 4.5 0.177 | M5X0.5 | 10094 | 5831 | 0,10 | ||
| 30 | K006 SS-K006 | 55 2.1653 | 245 0,965 | 13 0,512 | 6.5 0.256 | 5.0 0.197 | M5X0.5 | 13230 | 8281 | 0,15 | ||
LEAVE US A MESSAGE
If you have any questions, please fill out the form to contact us, and our customer service will reply to you within 24 hours!
|
Suffixes |
|
|
Sealing Types |
|
|
2Z |
Metal shield (non-contact sealing) on both sides |
|
2RS |
One lip rubber metal seal on both sides |
|
2RS1 |
One lip rubber metal seal on both sides |
|
2S |
One lip rubber metal seal (on both sides) |
|
2F |
One lip rubber metal seal + flinger, on both sides |
|
2T |
Three lip seal on both sides |
|
T |
Outer ring with stopping pin |
|
2TC |
Three lip seal on both sides+ metal cover |
|
2TB |
Three lip seal + metal shield, on both sides |
|
TDT |
Three lip seal at one side, double three lip seal on the other side |
|
FS |
Sealing with one lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBS |
Sealing with three lip seal and a protective metal ring at one side and one lip seal on the other side |
|
TBT |
Sealing with three lip seal and a protective metal ring at one side and three lip seal on the other side |
|
2P |
Five lip seal on both sides |
|
2PB |
Five lip seal and metal shield, on both sides |
|
2PC |
Five lip seal on both sides + metal cover |
|
P |
Triple lip seal on one side, cylindrical surface of outer ring |
|
PP |
Triple lip seal, cylindrical surface of outer ring |
|
PB |
Triple lip seal on one side, spherical surface of outer ring |
|
PPB |
Triple lip seal, spherical surface of outer ring |
|
RR |
One lip seal cylindrical surface of outer ring |
|
RRB |
One lip seal spherical surface of outer ring |
|
KPP |
Triple lip seal cylindrical surface of outer ring |
|
KPPB |
Triple lip seal spherical surface of outer ring |
|
KR |
One lip seal on one side, cylindrical surface of outer ring |
|
KRR |
One lip seal, cylindrical surface of outer ring |
|
KRB |
One lip seal on one side, spherical surface |
|
KRRB |
One lip seal, spherical surface |
|
KRP |
One lip seal on one side and on the other side is triple lip seal |
