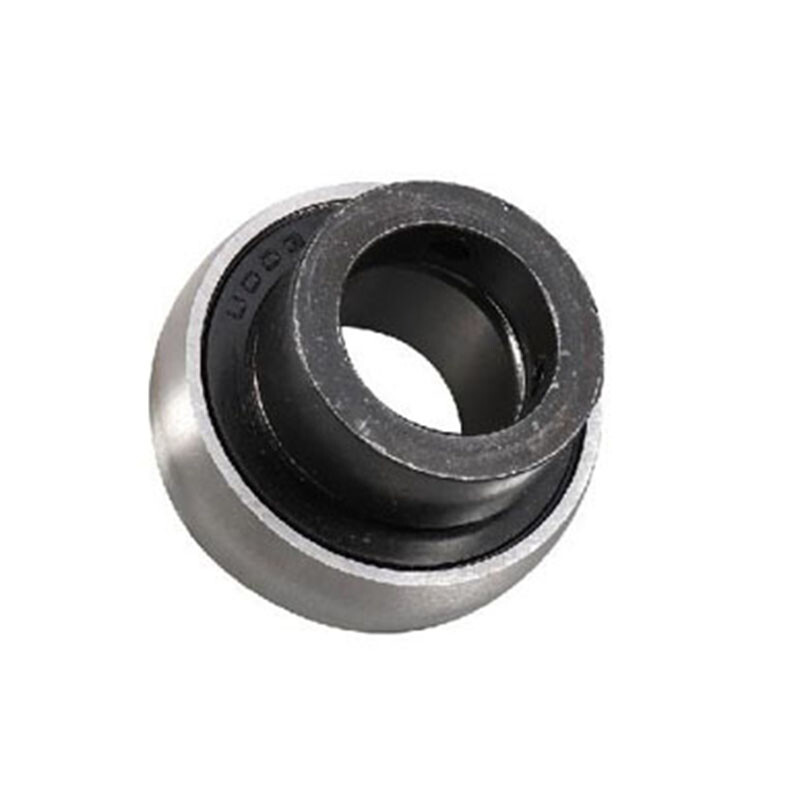

U000 Series

U000 Series

Technical Specifications

Shaft (d/mm)	Bearing No.	Dimension (mm/min)								Stop screw specification(mm)	Load (N)		Weight（KG）
Shaft (d/mm)	Bearing No.	D	B1	B	C	S	Bs	D3	G	Stop screw specification(mm)	Cr	Cor	Weight（KG）
10	U000 SS-U000	26 1,0236	17,5 0,6890	11,0 0,4330	8,0 0,3150	4,0 0,157	8,5 0,335	17,0 0,669	3,5 0,138	M4X0.7	4606	1906	0,03
12	0001 SS-U001	28 1,1024	17.5 0,6890	11,0 0,4330	8,0 0,3150	4,0 0,157	8,5 0,335	19,0 0,748	3,5 0,138	M4X0.7	5096	2401	0,04
15	U002 SS-U002	32 1,2598	18,5 0,7280	12,0 0,4720	9.0 0,3540	4.5 0.177	8,5 0,335	22,0 0,866	3,5 0,138	M4X0.7	5586	2842	0,05
17	U003 SS-U003	35 1,3779	20.5 0,8070	13,5 0,5310	10,0 0,3940	5,0 0,197	9,5 0,374	25,0 0,984	3,5 0,138	M4X0.7	5978	3284	0,06
20	U004 SS-U004	42 1,6535	24,5 0,9640	16,5 0,6500	12,0 0,4720	6,0 0,236	11,0 0,433	30,0 1,181	5.0 0,197	M5X0.8	9359	5047	0,10
25	U005 SS-U005	47 1,8504	25,5 1,0040	17,5 0,6890	12,0 0,4720	6,0 0,236	12,0 0,472	36,0 1,417	5,0 0,197	M5X0.8	10094	5831	0,14
30	U006 SS-U006	55 2,1653	26.5 1,0430	18,5 0,7280	13,0 0,5120	6,5 0,256	12,0 0,472	42,0 1,653	5,0 0,197	MSX0.8	13230	8281	0,19
35	0007 SS-U007	62 2,4400	29,5 1,1610	20,0 0,7870	14.0 0,5510	7,0 0,276	13,5 0,531	48,0 1,889	5.0 0,197		15920	10290	0,25
